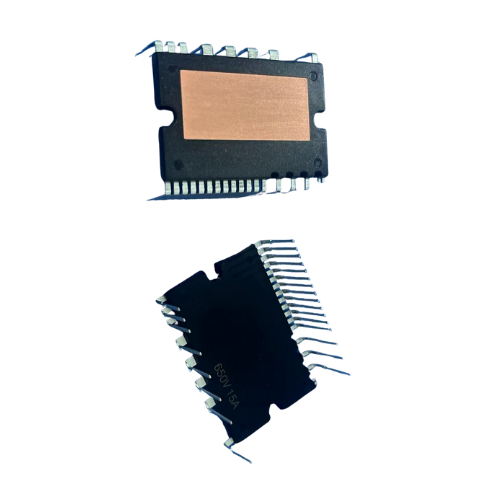

The DK15S60NXD is a highly integrated and reliable three-phase brushless DC motor drive circuit, designed for low-power frequency conversion applications. It is commonly used in devices like air conditioners, refrigerators, and washing machines. The module features a 3-phase full-bridge high-voltage gate driver circuit and six low-loss IGBTs, offering superior efficiency and performance. Built-in protection functions include under-voltage, short circuit, and over-temperature protection, ensuring safe and reliable operation in demanding environments.
Features
Built-in 6 IGBTs and 3 half-bridge gate drivers for efficient operation.
Low-loss trench gate-field stop IGBT for better performance and reduced power loss.
Integrated bootstrap diode for stability.
Built-in protections: under-voltage, short circuit (overcurrent), and over-temperature protection.
Fault signal outputs: Provides feedback for short circuit, over temperature, and low-side power under-voltage faults.
Wide input signal compatibility: Works with 3.3V and 5V input signals.
High insulation: 1500Vrms/min for safety and reliable operation.
Applications
Air-conditioning Compressors: Controls the motor in air conditioning systems, providing efficient cooling performance.
Refrigerator Compressors: Suitable for refrigeration systems, optimizing energy use.
Low-power Inverters: Used in systems that require efficient power conversion and motor control.
Industrial Sewing Machines: Offers precise motor control for industrial equipment.
Other Home Appliances: Ideal for use in devices like washing machines requiring brushless DC motor control.
