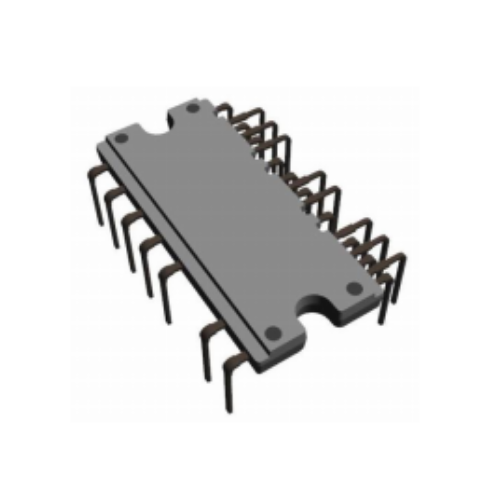

The DK10S60NXD is an integrated, highly reliable three-phase brushless DC motor drive circuit, designed for low-power frequency conversion applications. This module includes a 3-phase full-bridge high-voltage gate driver circuit and 6 low-loss IGBTs. With built-in protections such as under-voltage, short circuit, and over-temperature protection, it ensures safety and stability. It is commonly used in various applications like fan motors, water pumps, refrigerators, and industrial motors. The device is also equipped with a temperature detection feature and supports both 3.3V and 5V input signals for compatibility with a wide range of control systems.
Features
Built-in 6 IGBTs and 3 half-bridge gate drivers for efficient and reliable performance.
Built-in bootstrap diode to simplify the design and reduce the component count.
Comprehensive protection functions: Under-voltage, short circuit (overcurrent), over-temperature protection, and temperature output.
Shut-Down input for emergency cut-off in fault conditions.
Temperature detection output: Negative temperature coefficient thermistor output for temperature monitoring.
Input signal compatibility: Supports both 3.3V and 5V input signals with effective high-level logic.
High insulation class: 1500Vrms/min, providing excellent electrical isolation.
Compact design with integrated functionality for reducing board space.
Applications
Fan Motors: Suitable for controlling small fan motors in HVAC systems, electronics, and appliances.
Blenders: Efficient motor control for household appliances like blenders and mixers.
Water Pumps: Ideal for controlling pumps used in residential and industrial applications.
Refrigerators: Energy-efficient motor control for refrigeration systems.
Industrial Motors: Designed for industrial motor applications requiring robust and reliable control.
