The DKT600 4-10 Phase Control Thyristor is designed to handle high current and power conversion requirements in industrial applications. Featuring a center amplifying gate for efficient switching and a robust metal case with ceramic insulation, it offers low on-state voltage drop and reduced switching losses. Capable of handling 600A of average on-state current and surge currents up to 9kA, this thyristor is ideal for large power converters, DC and AC switches, and both active and passive inverters. It provides reliable performance and optimal efficiency in demanding environments.
Features
Center amplifying gate design for efficient switching
Metal case with ceramic insulator for durability and effective insulation
Low on-state voltage drop and switching losses for enhanced efficiency
Surge current capability up to 9kA
Voltage range: 400V to 1000V
High current capacity: 600A average on-state current
Excellent thermal performance with a thermal resistance of max. 0.045°C/W

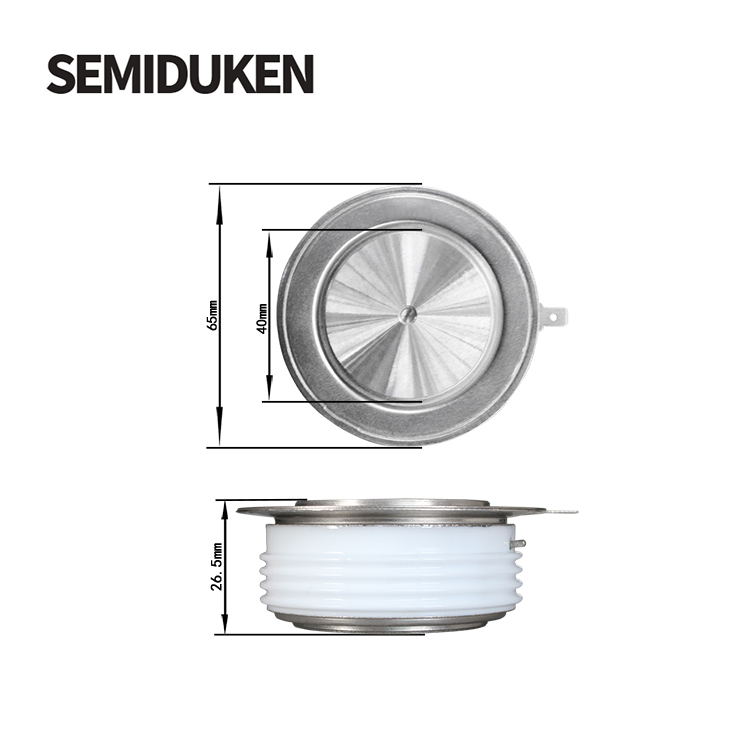

Compact design (weight: 80g)
Wide operating temperature range: -40°C to 140°C
Applications
Large Power Converters: Ideal for high-power conversion systems in industrial environments.
DC and AC Switches: Effective in controlling DC and AC electrical circuits.
Active and Passive Inverters: Used in both active and passive inverter applications for efficient power conversion.
Power Systems: Suitable for systems requiring reliable and efficient energy regulation.
Surge Protection: Handles high surge currents for protecting electrical systems.
