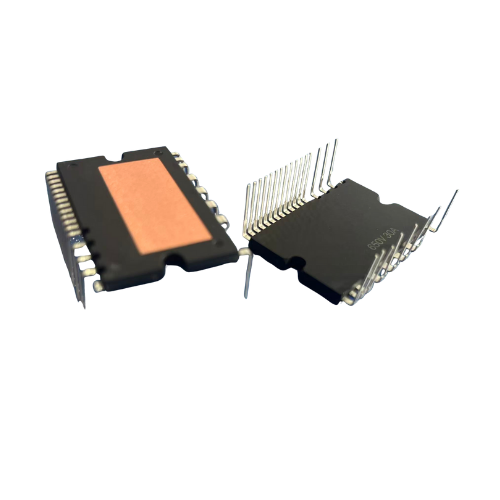

The DK30S60NDX is an advanced three-phase inverter module designed for low-power motor drive applications. It is highly integrated, combining six low-loss IGBTs and a built-in three-phase full-bridge gate driver circuit. The module is equipped with various protection features such as under-voltage, short circuit, and over-temperature protection. This makes it ideal for use in applications like air conditioning compressors, refrigerator compressors, and low-power industrial motors. With a 600V rating and 30A current capability, the DK30S60NDX ensures efficient operation and reliable performance in demanding environments.
Features
Three-phase full-bridge inverter: Provides efficient DC/AC conversion.
Integrated low-loss IGBTs: Ensures high efficiency and reduced energy loss.
Built-in bootstrap diode: Simplifies the design and enhances reliability.
Comprehensive protection: Includes under-voltage, short circuit (overcurrent), and over-temperature protection.
Temperature monitoring: Ensures safe operation by continuously monitoring temperature.
Wide input signal compatibility: Works with both 3.3V and 5V input signals.
High voltage rating: Operates up to 600V with a peak current of 30A.
Low Vce(sat) Field-Stop IGBTs: Offers reduced saturation voltage for improved efficiency.
Applications
Air Conditioning Compressors: Ideal for motor control in HVAC systems.
Refrigerator Compressors: Used to efficiently manage compressor motors in refrigeration systems.
Low-Power Inverters: Perfect for small-scale energy conversion in consumer and industrial applications.
Industrial Sewing Machines: Efficiently controls motors in various industrial machines.
Home Appliances: Suitable for a range of consumer electronics requiring reliable motor control.
