The DKT200A 11-18 Phase Control Thyristor is a compact yet powerful device designed for industrial power control systems. With a center amplifying gate for efficient switching and a metal case with ceramic insulation, the DKT200A offers low on-state voltage drop and minimal switching losses, making it highly efficient. It can handle average on-state currents up to 200A and surge currents up to 4.65kA, making it suitable for AC controllers, DC and AC motor control, and controlled rectifiers. Its excellent thermal performance ensures reliable operation in demanding environments.
Features
Center amplifying gate design for efficient switching

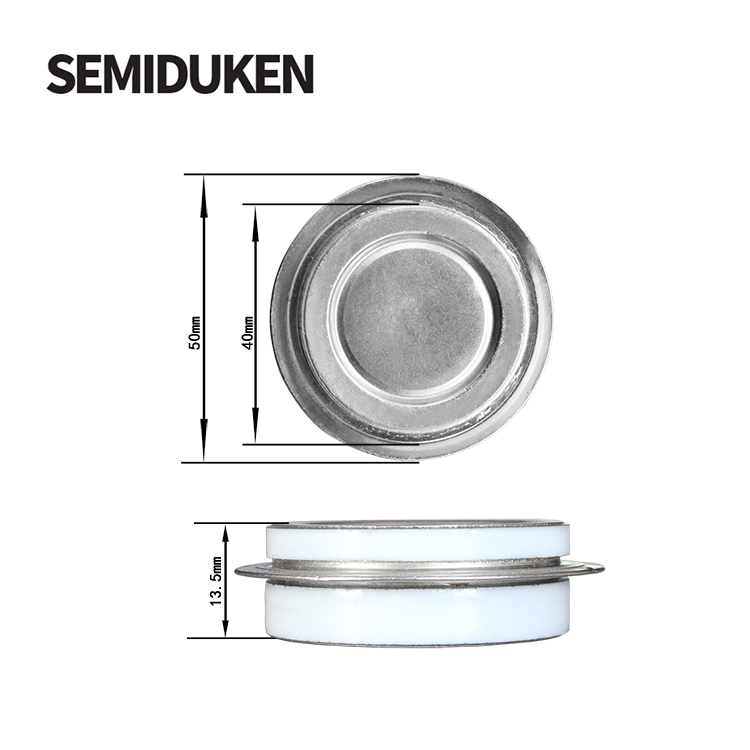

Metal case with ceramic insulator for enhanced durability and insulation
Low on-state voltage drop and switching losses for increased efficiency
Surge current capability up to 4.65kA
Voltage range: 1100V to 1800V
High current capacity: 200A average on-state current
Excellent thermal performance with a thermal resistance of max. 0.08°C/W
Lightweight and compact design (weight: 60g)
Wide operating temperature range: -40°C to 140°C
Applications
AC Controllers: Regulates alternating current in industrial systems.
DC and AC Motor Control: Efficiently controls motor operations in both DC and AC systems.
Controlled Rectifiers: Converts AC to DC power for a wide range of applications.
Power Systems: Ideal for high-efficiency energy conversion and regulation.
Surge Protection: Handles high surge currents for protection in industrial electrical systems.
