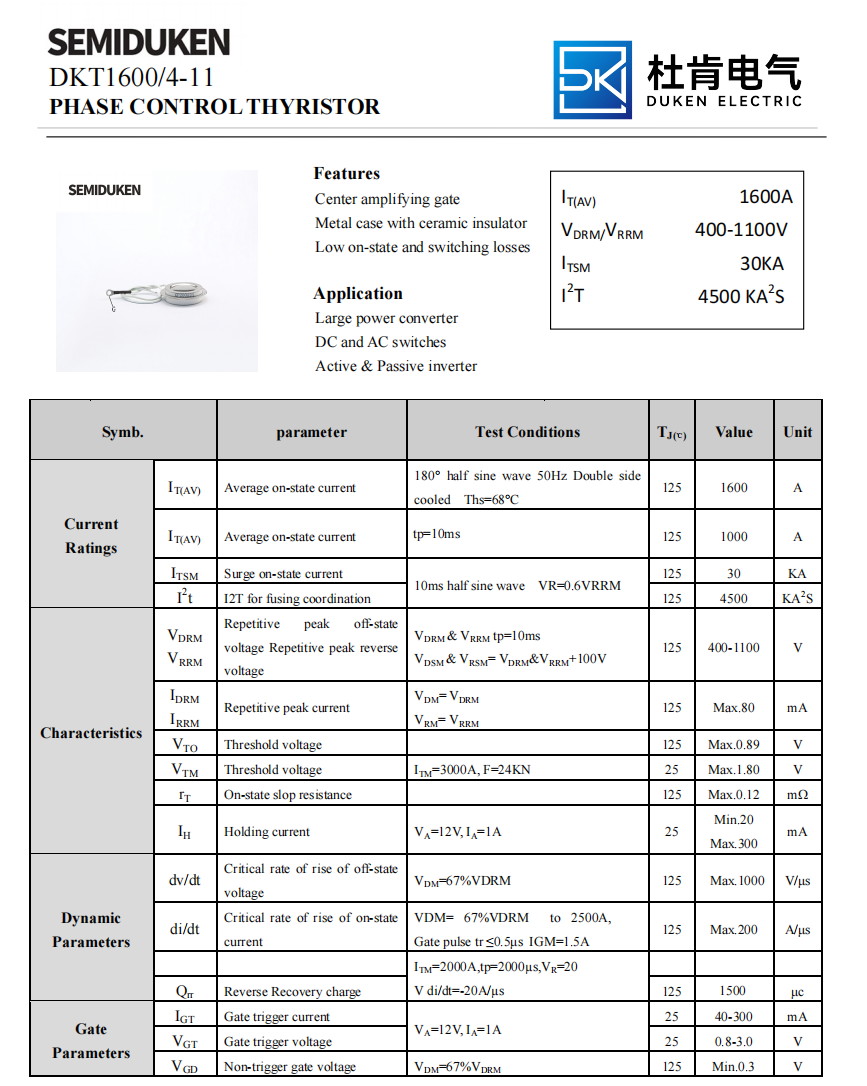

The SEMIDUKEN DKT1600/4-11 is a high-performance phase control thyristor designed for industrial applications, including large power converters, DC and AC switches, and both active and passive inverters.
Key Features:
Center amplifying gate for efficient triggering
Metal case with ceramic insulator providing excellent electrical insulation
Low on-state voltage drop and switching losses for enhanced efficiency
Surge current capability up to 30kA
Voltage range: 400V to 1100V
High average on-state current: 1600A

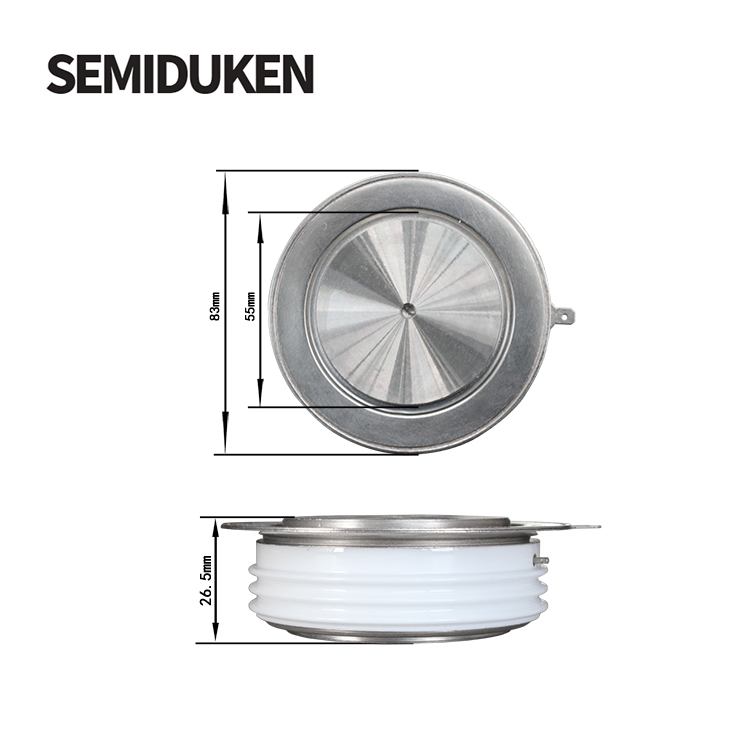

Robust mechanical design with mounting force between 19-26kN
Lightweight design at 440g, with a wide operating temperature range of -40°C to 140°C
Excellent thermal resistance (max. 0.02°C/W)
Applications:
Power conversion systems
High-current industrial power control
DC and AC motor control
Inverter circuits
