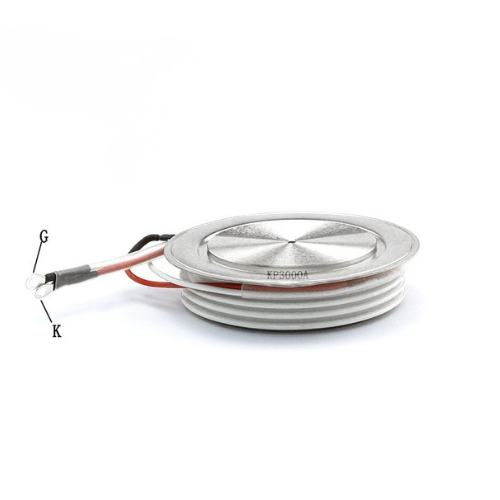

The DKT3500A 4-10 Phase Control Thyristor is a high-performance power control device designed for industrial applications such as AC controllers, DC and AC motor control, and controlled rectifiers. Featuring a robust metal case with a ceramic insulator and center amplifying gate, the DKT3500A ensures low on-state and switching losses, offering exceptional efficiency and reliability. With a surge current capability of up to 60kA and a voltage range of 400V to 1000V, this thyristor is ideal for high-power systems that require precise and efficient current regulation.
Features
Center amplifying gate design for efficient switching
Metal case with ceramic insulator for durability and insulation
Low on-state voltage drop and switching losses for increased efficiency
Surge current capability up to 60kA
Voltage range: 400V to 1000V
High current capacity: 3500A average on-state current
Excellent thermal performance with a thermal resistance of max. 0.010°C/W

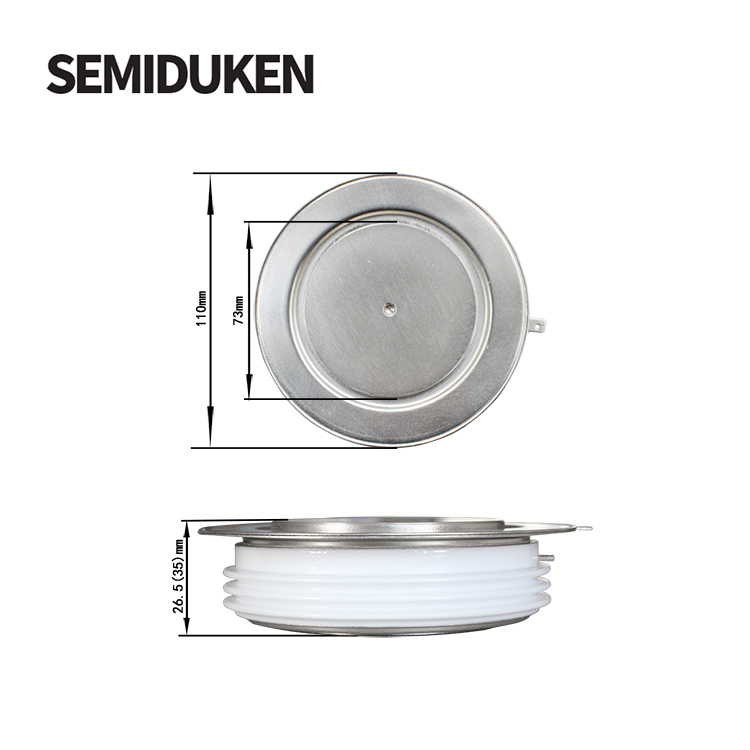

Compact and robust design (weight: 1100g)
Wide operating temperature range: -40°C to 140°C
Applications
AC Controllers
DC and AC Motor Control
Controlled Rectifiers
High power electrical systems requiring efficient current regulation
Surge protection in demanding applications
Industrial power control systems
