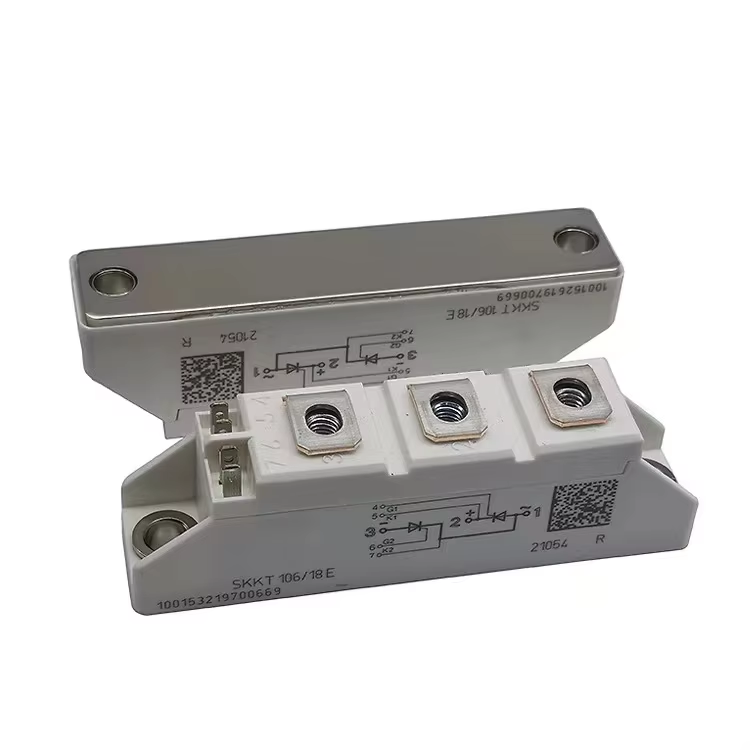

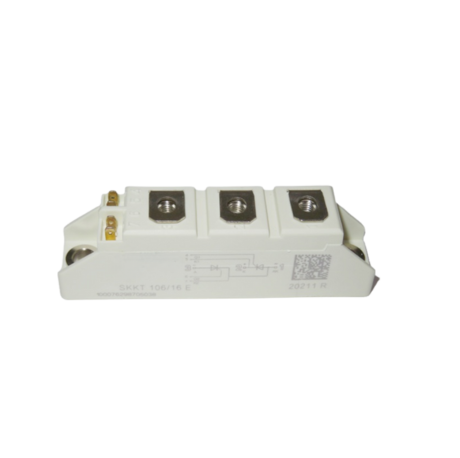

Dual Thyristor Power Module 106A 1200V
Module Type: Dual Thyristor
Average On-State Current (ITAV): 106 A at 85°C
RMS On-State Current (IRMS): 180 A
Peak Surge Current (ITSM): 2250 A (10 ms)
Repetitive Peak Off-State Voltage (VDRM): 1200 V
Repetitive Peak Reverse Voltage (VRRM): 1200 V
Non-Repetitive Surge Current: 2250 A (25°C), 1900 A (130°C)
I²t Rating: 2.5 × 10⁶ A²s
Trigger Current (IGT): 200 mA
Gate Trigger Voltage (VGT): 2.5 V
Holding Current (IH): 200 mA
Thermal Resistance (Rth JC): 0.3 K/W
Operating Temperature: -40°C to +130°C
Storage Temperature: -40°C to +125°C
Isolation Voltage to Heatsink: 3600 V~
Mounting Torque (Heatsink): 5 Nm
Mounting Torque (Terminals): 3 Nm
Weight: Approx. 95 g
Dimensions: 93 × 45 × 30 mm
Case Style: A46
Cooling: Baseplate conduction
Baseplate: Isolated aluminum oxide ceramic
Terminal Type: Screw terminals
Application: DC/AC motor control
Use Case: Soft starters, light dimming
Typical Recovery Charge: ~500 μC
Transient Thermal Impedance: ≤ 0.2 K/W
Mounting: Panel mount via screw holes
Insulation Class: Industrial
Device Type: Power Semiconductor
Thyristor Type: SCR (Silicon Controlled Rectifier)
Phase: Single phase
Isolation: Galvanic via ceramic baseplate
Recovery Time: Fast recovery
Polarity: Symmetrical
Rated Voltage: 1200 V
Gate Signal Requirement: 20 V, 20 Ω
Design Standard: Industrial-grade
Mechanical Vibration: Rugged construction
Trigger Mode: Gate triggering
Part Number Reference: SKKT 106/12E
