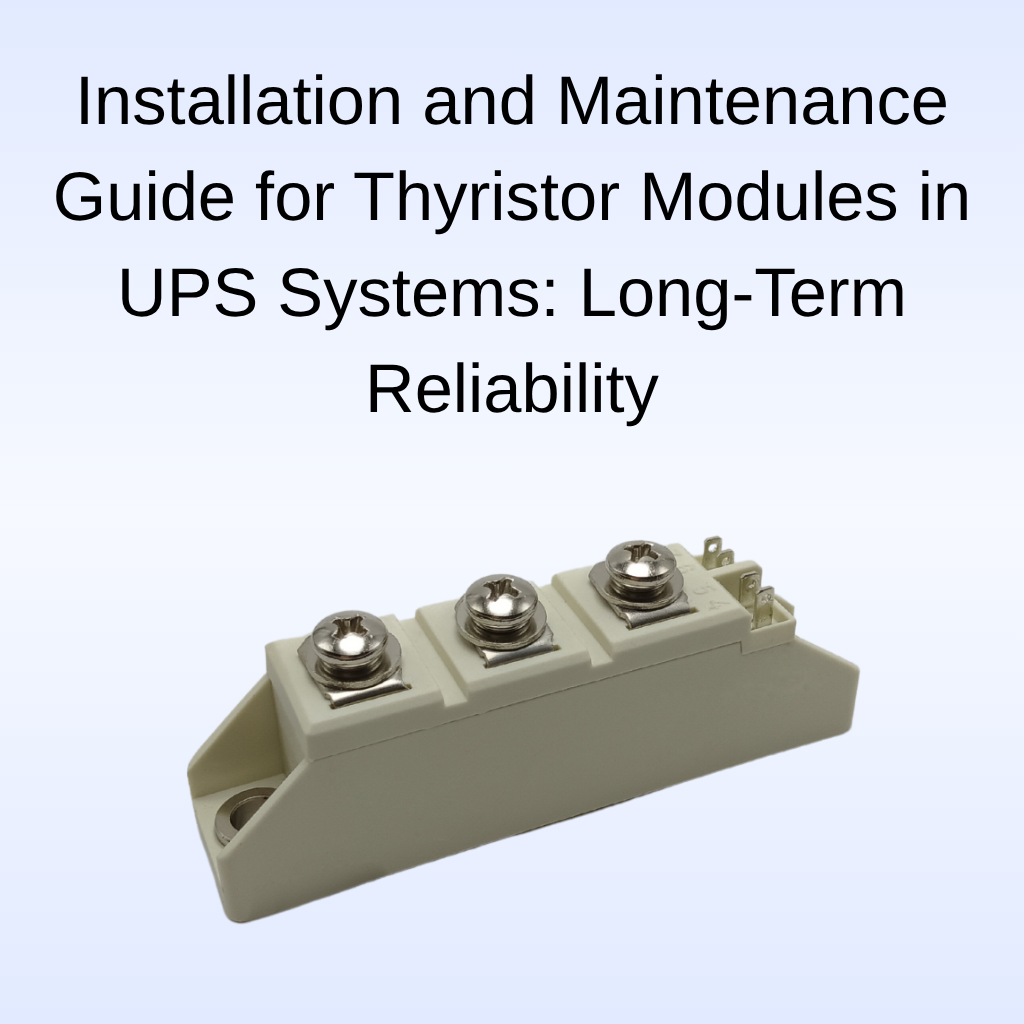

Installation and Maintenance Guide for Thyristor Modules in UPS Systems: Long-Term Reliability
Thyristor modules are crucial components in Uninterruptible Power Supply (UPS) systems, providing the ability to regulate and convert power in a controlled manner. Proper installation and ongoing maintenance of these modules are essential to ensuring the long-term reliability and efficiency of the UPS system. This guide provides a step-by-step approach for installing and maintaining thyristor modules, focusing on critical aspects such as high surge current, low on-state voltage, and industrial phase control.
Step 1: Installation of Thyristor Modules in UPS Systems
Installing thyristor modules properly is vital to achieving optimal performance and ensuring that the system functions reliably. Follow these steps during installation:
Compact Package and Space Considerations: Thyristor modules are typically designed in a compact package, making them easy to integrate into the UPS system. During installation, verify that the available space allows for adequate ventilation and airflow to prevent overheating, which could affect the performance and longevity of the modules.
Anodizing for Corrosion Protection: Anodizing provides an additional layer of protection against corrosion. Ensure that the anodized surfaces of the thyristor modules are intact and undamaged during installation, particularly in environments where moisture or corrosive agents may be present.
Power Converter Integration: Thyristor modules play a key role in the power converter system of the UPS. Ensure that the modules are properly integrated with the power converter for efficient DC to AC conversion. Check that all electrical connections are secure and that the modules are aligned with the converter's requirements.
Handling High Surge Current: UPS systems frequently experience high surge current during startup or load transitions. Ensure that the thyristor modules you select are capable of handling these surges. Modules with the appropriate surge current rating will protect the entire UPS system and the connected equipment from damage caused by voltage spikes.
Step 2: Testing the Installation
After the thyristor modules are installed, perform tests to ensure that the system is functioning as expected. The following tests are crucial:
Low On-State Voltage Testing: The low on-state voltage of the thyristor modules helps to reduce power losses and improve efficiency. Test the modules to verify that the voltage levels are within the desired range for optimal system performance.
Industrial Phase Control Testing: The industrial phase control function stabilizes the output voltage in industrial environments. Verify that phase control is operational and delivering stable power, particularly under varying load conditions.
Surge Current Testing: Conduct tests to ensure that the thyristor modules can handle high surge current without compromising the performance of the UPS system. The system should be able to absorb surge currents without causing any damage.
Step 3: Maintenance of Thyristor Modules
Regular maintenance is essential to ensure the long-term performance of thyristor modules in UPS systems. Proper maintenance practices help prevent premature failure and extend the lifespan of the modules. Key maintenance tasks include:
Routine Inspections: Periodically check the thyristor modules for any visible damage such as discoloration, cracks, or corrosion. Replace any damaged modules to prevent system failure.
Cleaning and Debris Removal: Dust and debris can accumulate on the modules, impairing their performance. Regularly clean the modules and surrounding components to ensure optimal airflow and prevent overheating. Use compressed air or a soft brush to remove dust.
Thermal Management: Ensure the cooling system, including fans and heat sinks, is working properly. Monitor the temperature of the modules during operation to ensure they are not overheating. Consider upgrading the cooling system if the environment is high-temperature.
Surge Current Monitoring: Continuously monitor the system for surge current issues. If frequent surge currents occur, assess whether the modules are operating within their rated capacity and adjust the system’s load accordingly to avoid damage.
Conclusion
Proper installation and maintenance of thyristor modules are crucial for ensuring the reliability and efficiency of UPS systems. By focusing on key features such as high surge current handling, low on-state voltage, and industrial phase control, you can optimize UPS performance. Regular maintenance, including inspections, cleaning, and monitoring, will prolong the lifespan of the thyristor modules and enhance the efficiency of the UPS system, ensuring uninterrupted power supply for critical equipment.
