Description
Package / Case: Standard
Mounting Type: Standard

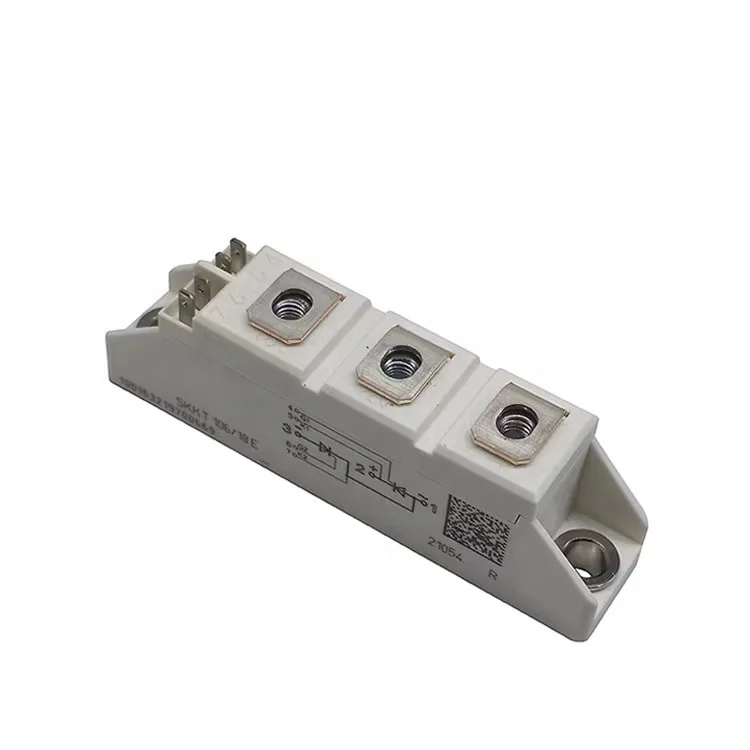

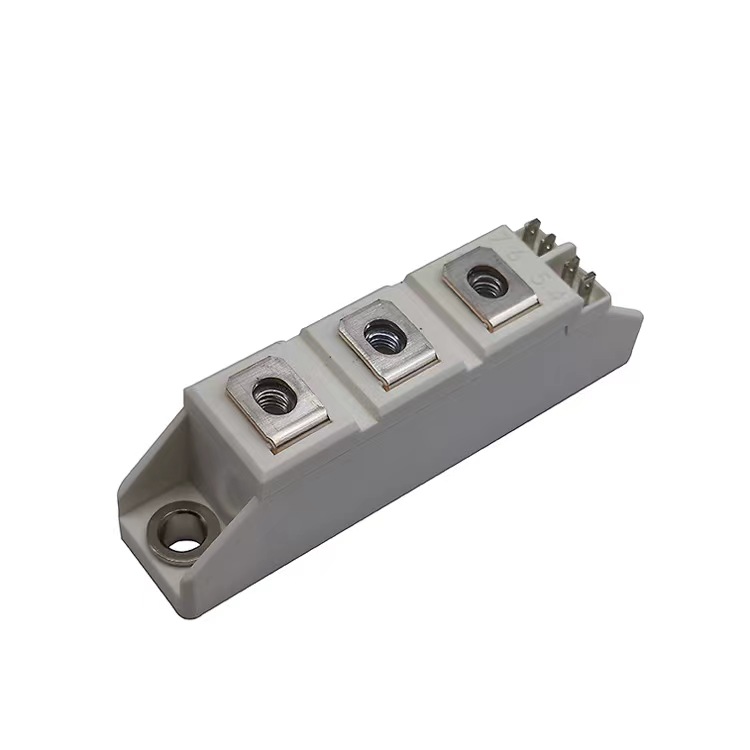

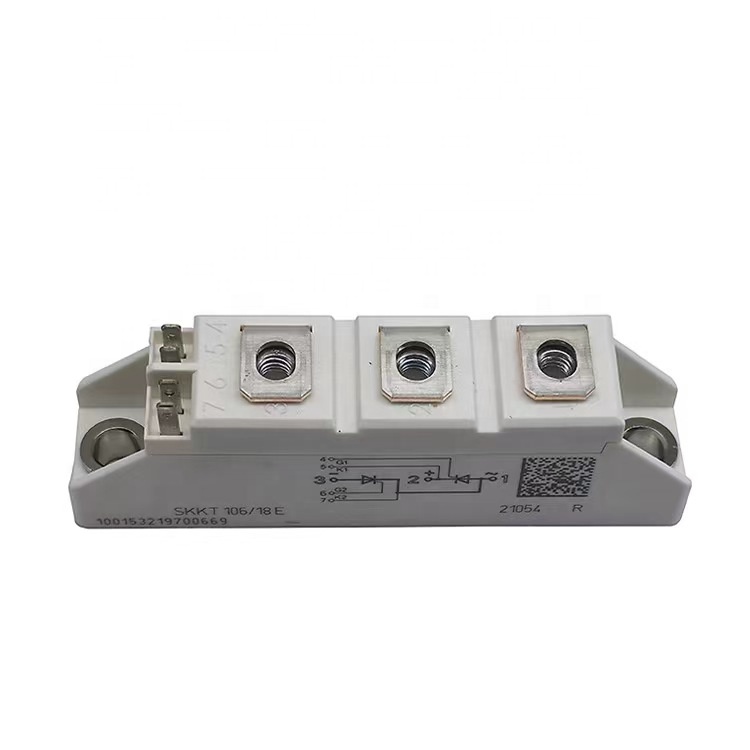

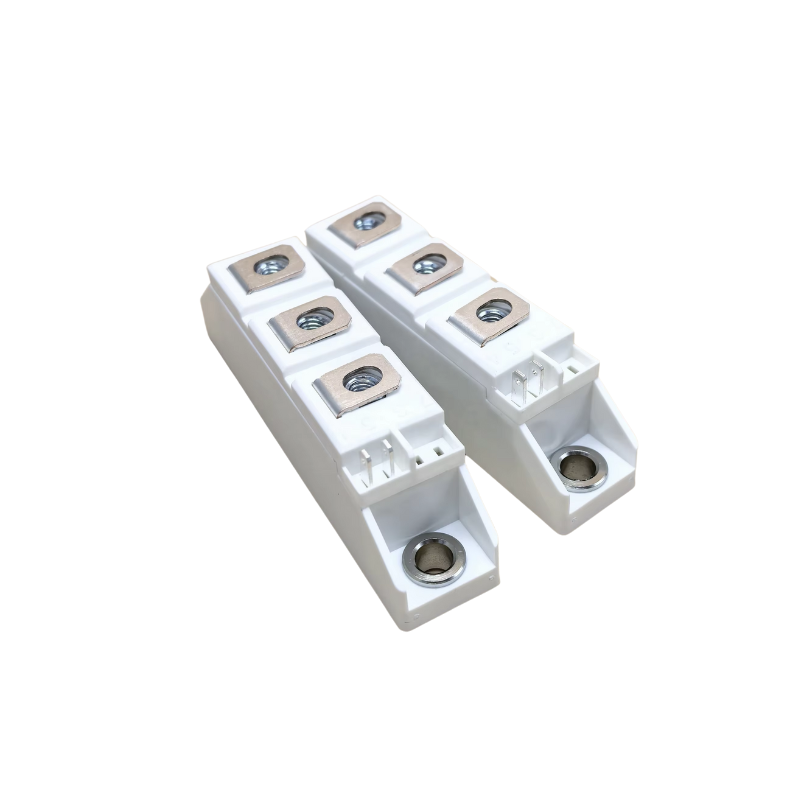

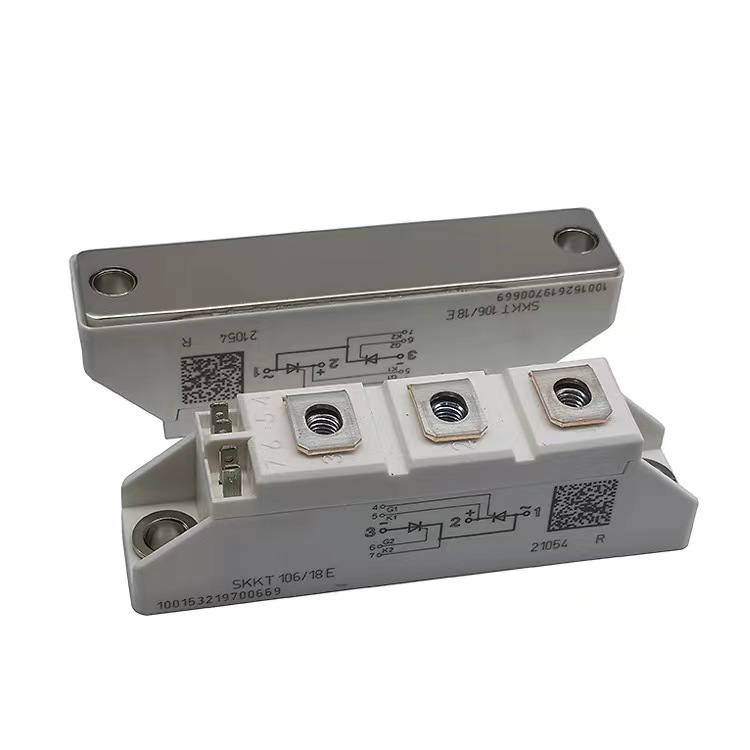

Description: Thyristor Module SKKT106/18E
Model Number: SKKT106/18E
Type: Thyristor Module
Place of Origin: Zhejiang, China
Brand Name: SEMIDUKEN
SHIPPING: DHL\UPS\Fedex\TNT\EMS\POST
Warranty: 1year
Delivery Time: 1-3 Days
Product Description
Key Features:
* High Power Handling: 106A average current (Tc=85°C) with 800-1800V blocking voltage range
* Robust Construction: Aluminum oxide ceramic isolated metal baseplate for optimal heat transfer
* Reliable Performance: Hard soldered joints ensure long-term durability in industrial environments
* Safety Certified: UL recognized (File No. E 63532) for compliance with international standards
* Thermal Efficiency: Low thermal resistance (0.28K/W per thyristor) enables effective heat dissipation
Technical Specifications:
* Voltage Ratings: VRRM/VDRM 800-1800V (multiple voltage grades available)
* Current Capacity: 106A continuous (180° sine wave), 2250A surge (10ms)
* Switching Performance: 1μs gate delay time, 150A/μs critical di/dt rating
* Isolation Strength: 3600V AC isolation voltage (1s test)
* Operating Temperature: -40°C to +130°C junction temperature range
Typical Applications:
* Precision DC motor control for machine tools
* AC motor soft starting systems * Industrial temperature regulation (ovens, furnaces)
* Professional lighting dimming (theaters, studios)
* Chemical process control equipment
* High Power Handling: 106A average current (Tc=85°C) with 800-1800V blocking voltage range
* Robust Construction: Aluminum oxide ceramic isolated metal baseplate for optimal heat transfer
* Reliable Performance: Hard soldered joints ensure long-term durability in industrial environments
* Safety Certified: UL recognized (File No. E 63532) for compliance with international standards
* Thermal Efficiency: Low thermal resistance (0.28K/W per thyristor) enables effective heat dissipation
Technical Specifications:
* Voltage Ratings: VRRM/VDRM 800-1800V (multiple voltage grades available)
* Current Capacity: 106A continuous (180° sine wave), 2250A surge (10ms)
* Switching Performance: 1μs gate delay time, 150A/μs critical di/dt rating
* Isolation Strength: 3600V AC isolation voltage (1s test)
* Operating Temperature: -40°C to +130°C junction temperature range
Typical Applications:
* Precision DC motor control for machine tools
* AC motor soft starting systems * Industrial temperature regulation (ovens, furnaces)
* Professional lighting dimming (theaters, studios)
* Chemical process control equipment
Specification
item | value |
Model Number | SKKT106/18E |
Type | Thyristor Module |
Place of Origin | China |
Zhejiang | |
SHIPPING | DHLUPSFedexTNTEMSPOST |
Warranty | 1year |
Delivery Time | 1-3 Days |

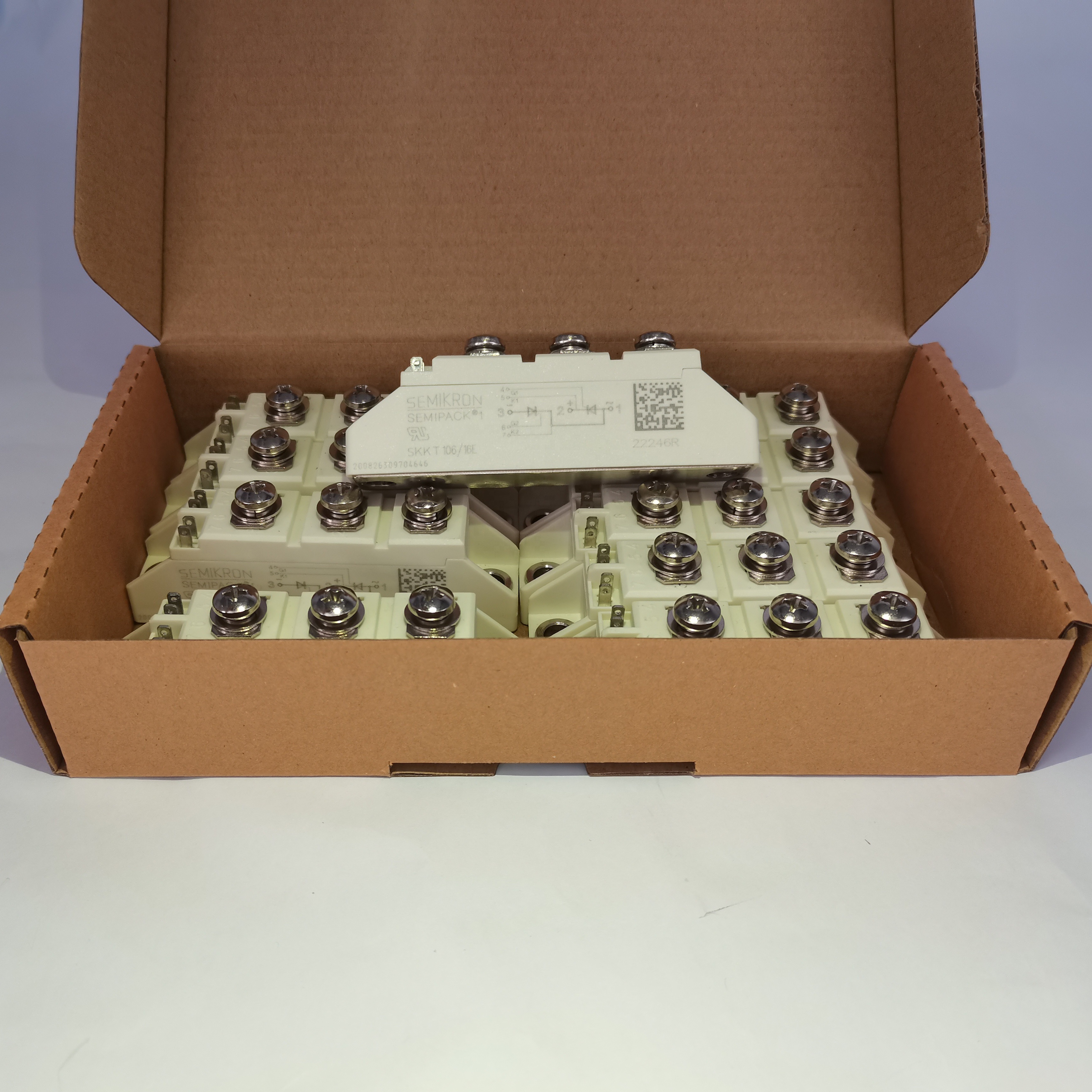

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Zhejiang Duken Electric Industry Co., Ltd.
Our brand: DUKEN
based on technology, market-oriented, and with unique development concept is expanding quickly with its sights set on becoming a globle player in the power semiconductors
Who are we?We are a high-tech electronics company integrating R & D, design, production, sales, international trade of various products, specialized in diode & thyristor with well-equipped testing facilities and strong technical force .
What we supply?1.Products:
power Semiconductor Device such as Power Thyristors, Diodes, Modules, SCRs, Transistors, TRIACs, Chips, Parts ,industry related automation equipment2. One-Stop Industrial Solution in many ways:
Inductor Furnace Spare Parts One-Stop Solution;
Welding machine special device One-Stop Solution;
Medical Equipment One-Stop Solution;
Locomotive Electronic One-Stop Solution;
Rectifier cabinet One-Stop Solution;
High reputation in the field.3. We provide OEM and ODM with our cooperation factories, some samples we can produce within 30 working days.Top motto and mission DUKEN electronics values every client and aim to build a win-win relationship with all my customers and the society with improving ability and quality, providing the best service to worldwide clients. Where are we based？LIUSHI TOWN, where is China's electrical capital.Our advantages:1) Prompt reply and good communication
2) Professional team
3) Customized service
4) Reasonable price
5) High quality
6) Fast delivery
7) One-stop service
We warmly welcome you to establish cooperation and create a bright future together with us.
For further information, please do not hesitate to Contact Me.
All inquiries from you will be highly appreciated！！！！
